SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Certification:CE

Model Number:  80A 100A

is_customized: Yes

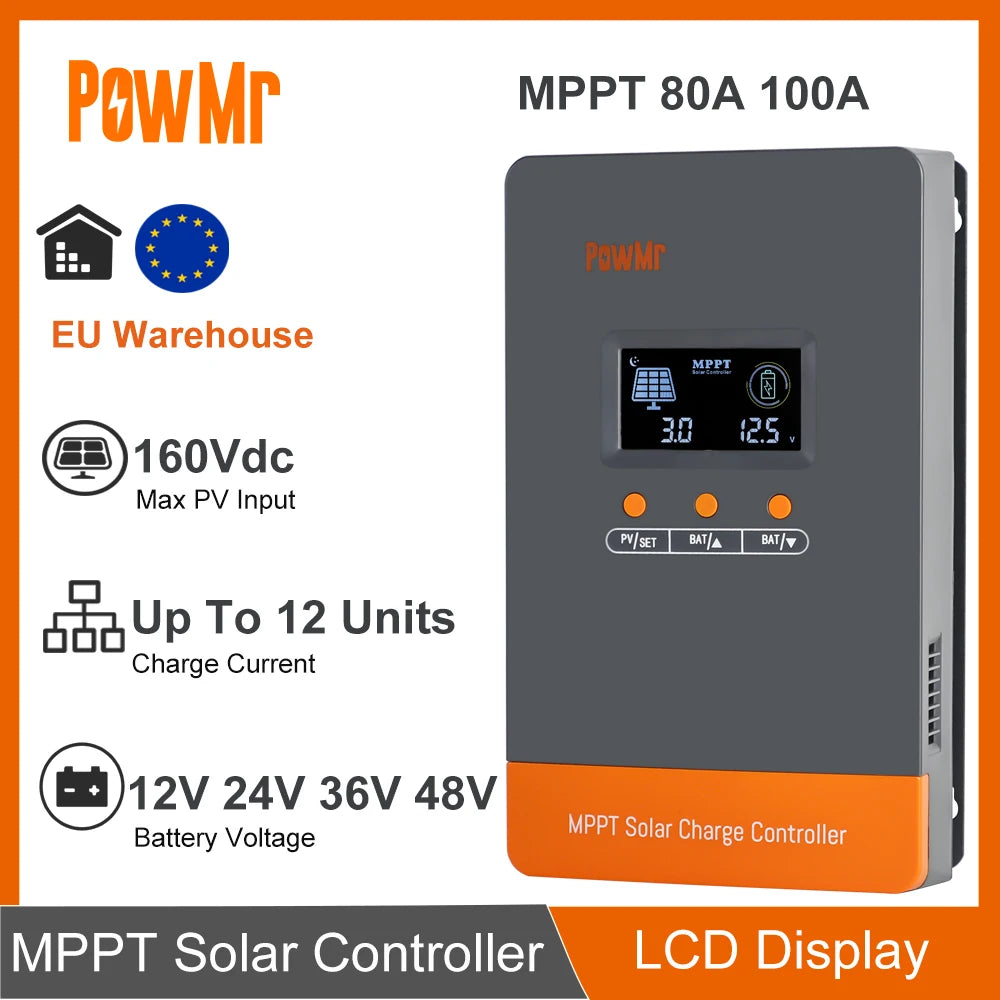

PowMr 80A 100A MPPT Solar Charge Controller 12V/24V/36V/48V Auto Max Solar PV 160V Regulator Supports Up to 12 Units in Parallel

Product Features

Integrated Charging Presets

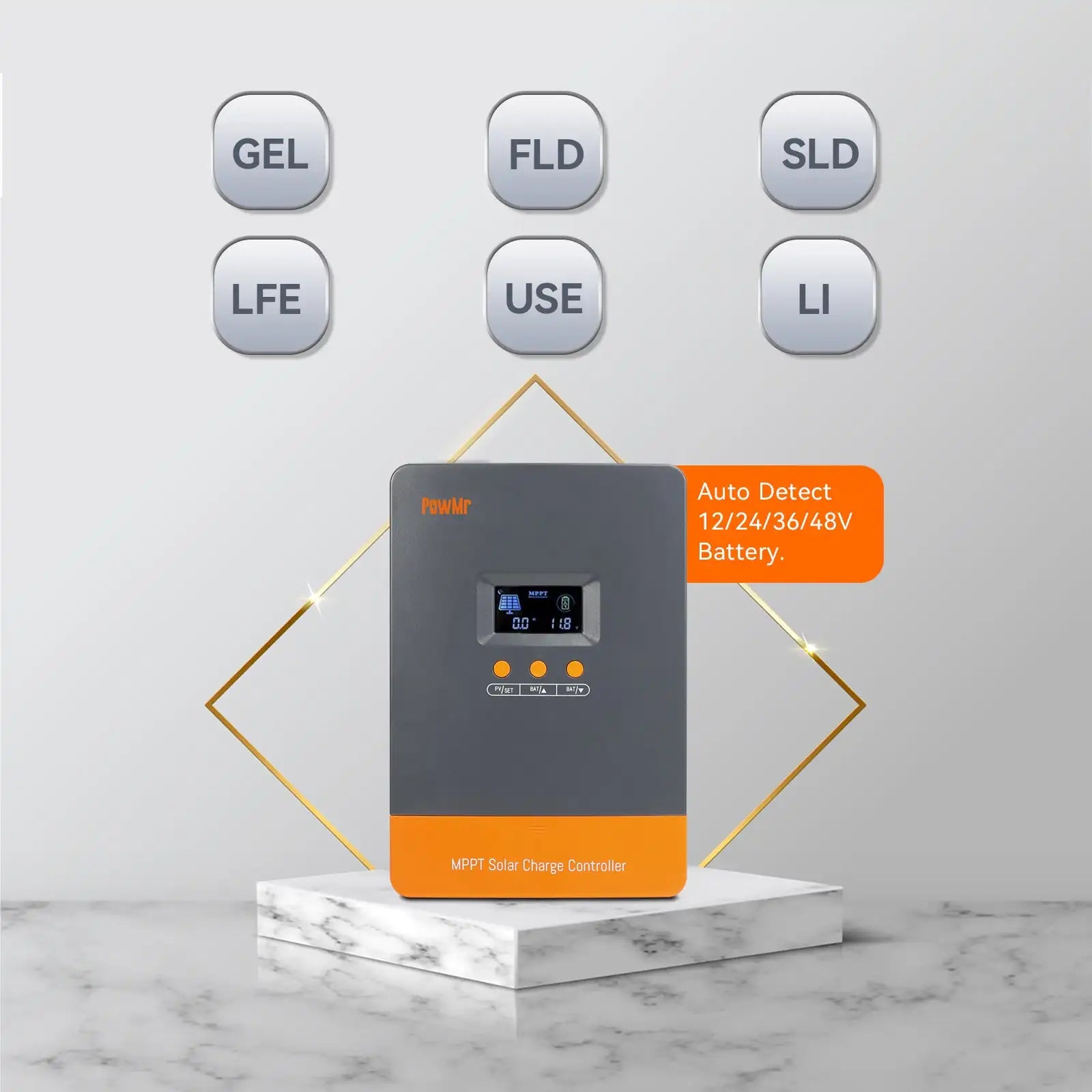

Integrated charging modes include adaptive charging logic, suitable for most battery types such as flooded lead-acid batteries, gel-sealed lead-acid batteries, and lithium batteries. Specific charging parameters for each battery type can be found in Section 3.5

Versatile Application

Compatible with 12V/24V/36V/48V system voltages.

Multi-Stage Charging Algorithm

The multi-stage charging algorithm is designed to optimize each charging cycle. After the batteries are fully charged, it maintains battery capacity by applying preset charging parameters in specific charging stages.

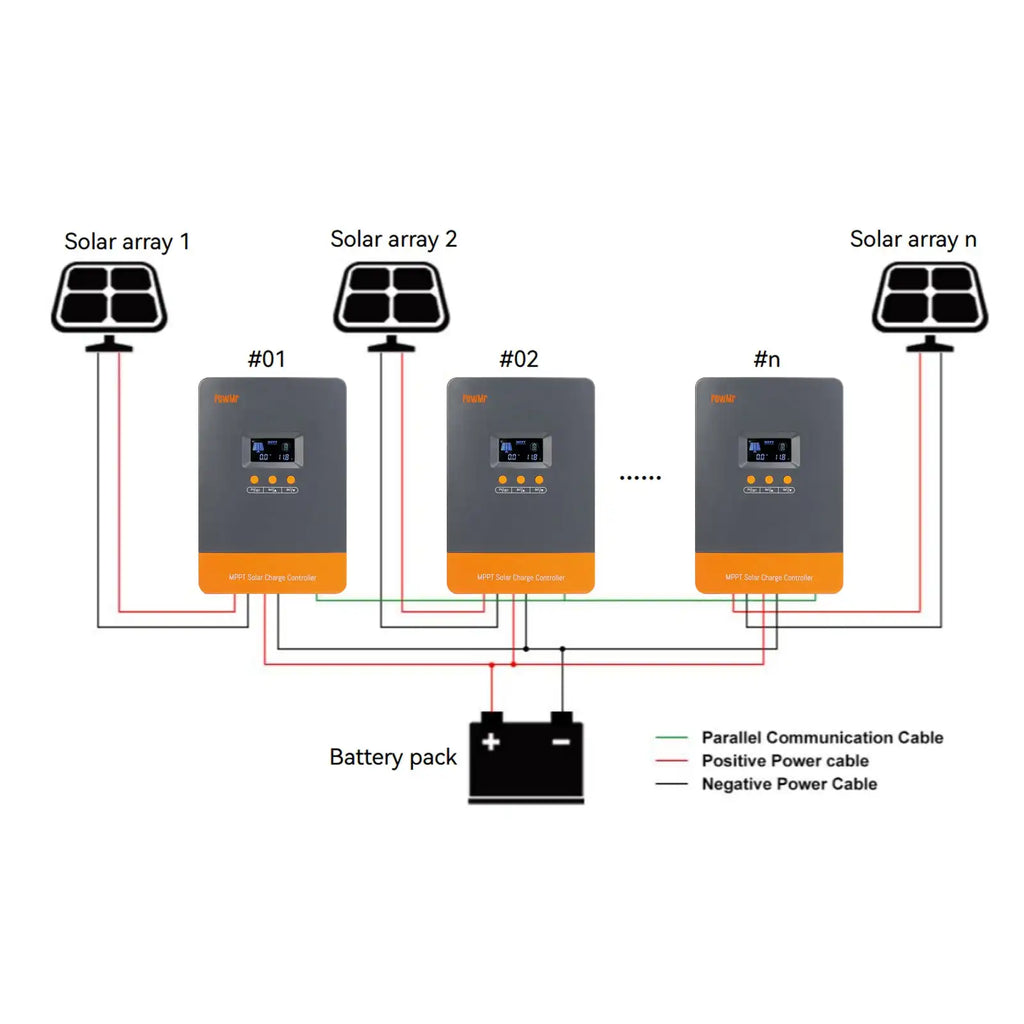

Supports Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel operation guidelines, refer to Section 7.

Adaptive Boost Charging

During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).

External Temperature Probe Configuration

Enhance precision in battery temperature monitoring by configuring an external temperature probe. This ensures accurate temperature compensation for optimal system performance.

Lithium Battery Activation

Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally, when connected lithium batteries are in a protected state, the controller will activate the lithium batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.

Product Specification

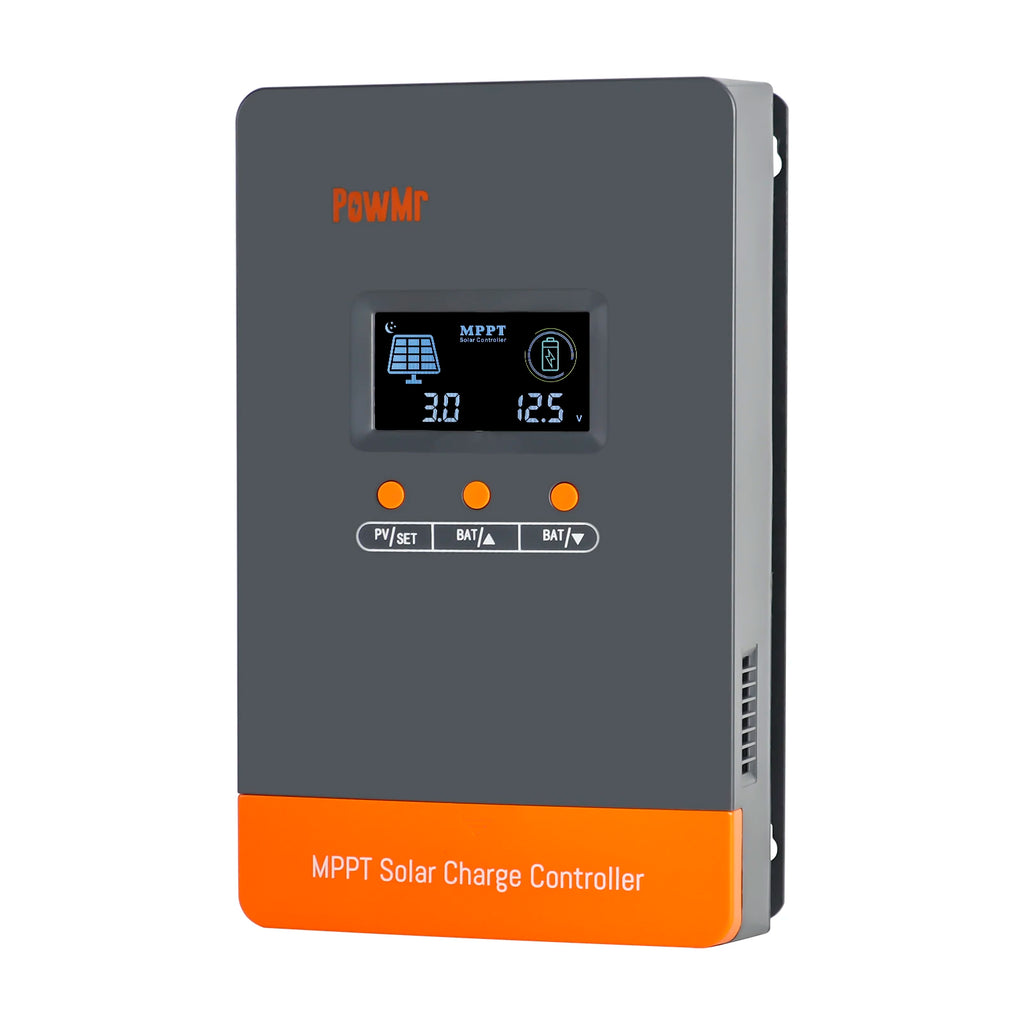

Product Pictures
